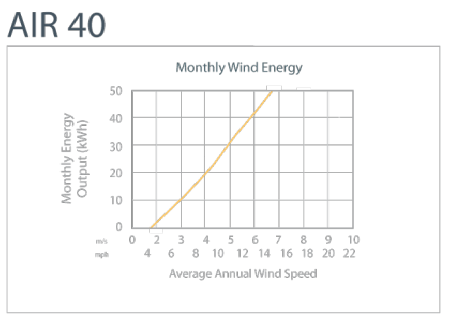

Energy | Approx. 40 kWh/mo at 5.8 m/s (13 mph) |
Swept Area | 1.07 m2 (11.5 ft2) |
Rotor Diameter | 1.17 m (46 in) |
Weight | 5.9 kg (13 lb) |
Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
Startup Wind Speed | 3.1 m/s (7 mph) |
Voltage | 12, 24 and 48 VDC |
Turbine Controller | Mircoprocessor-based smart controller |
Body | Permanent mold cast aluminum |
Blades | (3) Injection-molded composite |
Alternator | Permanent magnet brushless |
Overspeed Protection | Electronic torque control |
Survival Wind Speed | 49.2 m/s (110 mph) |
Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Wind Speed Operating Range | 3.1-22 m/s (7-49 mph) |
Optimum Wind Speed Range | 4.5-22 m/s (10-49 mph) |

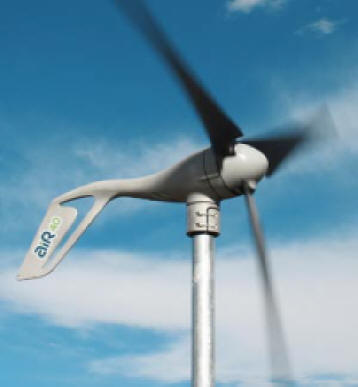

AIR 40 is the premier micro-wind turbine for land-based applications. It operates efficiently across a wide-range of wind speeds, providing energy for telecom, water pumping, lighting, SCADA, off-grid homes, or other low energy demand battery charging applications. The AIR 40 is ideal for pairing with solar to offset seasonal variation, delivering more consistent energy.
Advanced
microprocessor technology for superior performance and high
wind protection without mechanical braking.
Blades
designed for quieter operation, durability and optimum
energy capture in most wind speeds.
Lightweight
design is simple and easy-to-install; integrated controller
for plug-and-play operation
Pair
with solar PV for redundant energy production year-round.
Produces
40 kWh of energy per month generating energy in a wide range
of wind speeds
